From the heart of Manama, Bahrain, Ahmer Steel has established itself as a trusted partner in industrial supply, renowned for reliability and expertise. Our focus on Carbon Steel F80 Forged Fittings is a testament to this commitment. We understand that the integrity of your piping systems is non-negotiable, which is why we provide fittings engineered for exceptional strength and durability, ensuring your operations run smoothly and safely under the most demanding conditions, backed by our unwavering dedication to quality and customer satisfaction.
The composition of Carbon Steel F80 Forged Fittings is optimized for resilience, primarily featuring a robust carbon steel base. This gives them outstanding mechanical properties, including a high tensile strength and a specified minimum yield strength of 80 ksi. This impressive strength is achieved through a controlled heat treatment process, which refines the grain structure. The result is a fitting that can withstand significant pressure and stress, making it a fundamentally strong and reliable component for critical applications where failure is not an option.
Standard :Ā ASTM A694 / ASME SA 694
Dimensions :Ā ASME/ANSI 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size :Ā 1/8″ NB to 4″ NB
Type :Ā Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)
Rating Pressure :Ā Threaded End – 2000 /3000/ 6000 LBS. Socket-weld End – 3000 / 6000/ 9000 LBS.
| Grade | C | Si | Mn | P | S | Mo | Ni | Cr | Cu | V | Nb |
| F80 | 0.17-0.23 | 0.15-0.40 | 1.30-1.60 | ā¤ 0.025 | ā¤ 0.015 | 0.45-0.65 | ā¤ 0.30 | ā¤ 0.30 | ā¤ 0.25 | – | 0.025~0.050 |
| Grade | Yield Strength, Min (KSI ) | Tensile Strength, Min (KSI) |
| A694 | 65 | 77 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

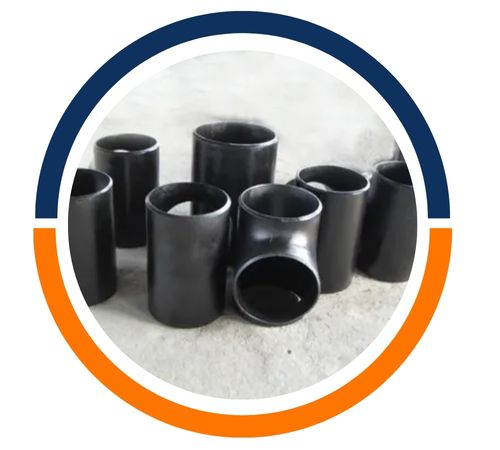

| ASME B16.11 | Factory-Made Wrought Socketweld Fittings | CS F80Ā Forged Screwed Elbows, Street Elbow, Carbon Steel F80Ā Screwed Unequal Tee, Steel Straight Tee, Carbon Steel F80Ā Reducing Coupling, Carbon Steel F80Ā Hex Plug, Forged Straight Tees, Socket Weld Pipe Cap, Forged Pipe Cap, Equal Crossess, CS F80Ā Threaded Bushing, Carbon Steel F65 Screwed Caps, Swedge Nipples |
| MSS-SP-79 | standard Practice covers ratings, tolerances, finish, dimensions, marking and material requirements for socket-welding | Carbon Steel F80Ā Barrel Nipples, CS F80Ā Forged Threaded Boss, Carbon Steel F80Ā Forged Hex Head Bull Plugs |

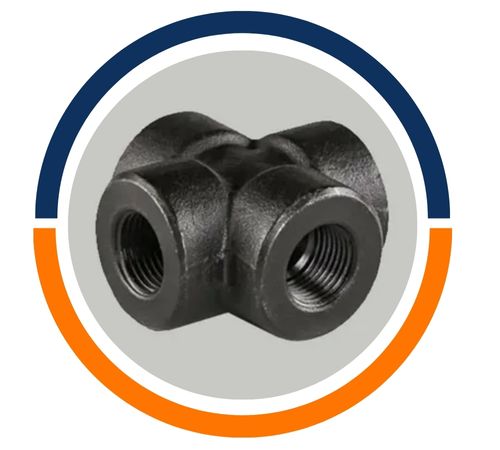

| MSS-SP-83 | Forged and Fabricated Socket-Welding Fittings for Low Pressure, Corrosion Resistant Applications | Carbon Steel F80Ā High Quality Socket weld 90Ā° Elbow, Straight and Reducing-on-the-Tees, Forged 45Ā° Short Radius Elbow, CS F80Ā caps, 3000LB Socket Weld Cross |
| MSS-SP-95 | Integrally Reinforced Forged Fittings ā Socket Welding, Threaded, and Buttwelding Ends | CS F80Ā Socket weld Long Radius 90 Degree Elbows, Reducing Nipple, Socketweld Bushing, Threaded Plug, End Pipe caps, Carbon Steel F80Ā Coupling |
Carbon Steel F80 Forged Fittings are the backbone of high-pressure systems across vital industries. You will find them installed in oil and gas pipelines, petrochemical plants, and power generation facilities, where they handle demanding services with unwavering reliability. Their exceptional strength also makes them ideal for marine applications, construction projects, and industrial machinery. Essentially, wherever system integrity under extreme pressure is paramount, these fittings provide the secure, leak-proof connections that keep complex operations running safely and efficiently day after day.
Ahmer Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Manama, Bahrain.
