Nestled in the industrial heart of Manama, Ahmer Steel has established itself as a trusted source for specialized piping components, with their A420 WPL6 pipe fittings representing a key part of their dedication to quality. These fittings are specifically engineered to perform reliably in challenging low-temperature environments, making them a critical choice for industries where failure is not an option. We understand that the integrity of your pipeline systems depends on the materials you specify, which is why our commitment to supplying robust and dependable A420 WPL6 fittings is at the core of what we do.
The strength of A420 WPL6 lies in its carefully balanced composition and mechanical properties. The chemistry includes elements like nickel, which is essential for maintaining toughness when temperatures drop significantly. This translates to fittings that offer excellent impact strength and resistance to brittle fracture, even in service conditions as low as -50°C. They possess the durability needed to handle substantial pressure, ensuring a secure and long-lasting connection point in your piping network. This combination of a resilient makeup and proven mechanical performance is what sets these fittings apart for critical applications.
Specifications : ASTM A420 / ASME SA420
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)
Type : Seamless / Welded / Fabricated
Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Grades : A420 WPL3 / A420 WPL6
Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
| Grade | C | Mn | Si | S | P | Cr | Mo |
| A420 WPL6 | 0.3 | 0.60-1.35 | 0.15-0.30 | 0.04 | 0.035 | 0.3 | 0.12 |
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) |
| A420 WPL6 | 60-85[415-585] | 35[240] |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

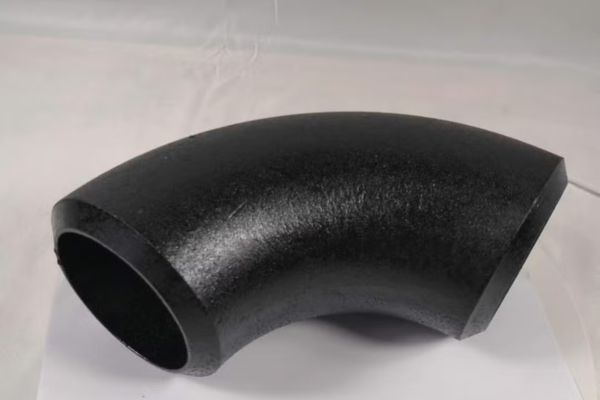

| Nom. Pipe Size | ASTM A420 Carbon Steel 90° Elbows | ASTM A420 Carbon Steel 45° Elbows | ASTM A420 Carbon Steel 180° Return Long Radius | |||||||||||
| Long Radius | Short Radius | 3R | Long Radius | 3R | STD | XS | ||||||||
| STD | XS | SCH. 160 | XXS | STD | XS | STD | XS | STD | XS | STD | XS | |||
| ½ | .18 | .25 | .09 | .19 | .35 | |||||||||
| ¾ | .19 | .25 | .09 | .19 | .40 | .65 | ||||||||
| 1 | .40 | .50 | .60 | .75 | .25 | 0.25 | .31 | .75 | 1.00 | |||||
| 1¼ | .60 | .90 | 1.00 | 1.38 | .4 | 0.38 | .50 | 1.25 | 1.75 | |||||
| 1½ | .90 | 1.15 | 1.80 | 1.50 | .56 | .75 | .40 | .69 | 1.88 | 2.39 | ||||
| 2 | 1.60 | 2.20 | 3.25 | 3.50 | 1.00 | 1.50 | 3.00 | 4.00 | .81 | 1.19 | 1.5 | 2.1 | 3.23 | 4.40 |
| 2½ | 3.25 | 4.00 | 5.13 | 7.00 | 2.13 | 2.80 | 6.00 | 8.00 | 1.75 | 2.13 | 3.00 | 4.00 | 6.50 | 8.00 |
| 3 | 5.00 | 6.50 | 8.50 | 11.0 | 3.00 | 4.25 | 10.0 | 13.0 | 2.63 | 3.50 | 5.00 | 7.00 | 10.25 | 13.00 |
| 3½ | 6.75 | 8.35 | 16.0 | 4.50 | 6.00 | 13.0 | 18.0 | 3.50 | 4.50 | 7.00 | 9.00 | 13.00 | 16.75 | |
| 4 | 9.00 | 13.5 | 18.0 | 20.0 | 6.25 | 8.50 | 18.0 | 25.0 | 4.50 | 6.10 | 9.00 | 13.0 | 18.5 | 25.0 |
| 5 | 15.0 | 22.0 | 32.0 | 36.0 | 9.60 | 14.0 | 29.0 | 43.0 | 7.50 | 10.7 | 15.0 | 22.0 | 30.0 | 44.0 |
| 6 | 24.5 | 35.0 | 57.0 | 65.0 | 18.0 | 23.0 | 45.0 | 70.0 | 12.0 | 17.5 | 23.0 | 35.0 | 50.0 | 70.0 |
| 8 | 50.0 | 71.0 | 120 | 118 | 34.0 | 47.5 | 90.0 | 140 | 23.0 | 35.0 | 45.0 | 70.0 | 95.0 | 142 |
| 10 | 88.0 | 107 | 260 | 58.0 | 70.0 | 159 | 218 | 43.0 | 53.0 | 80.0 | 109 | 117 | 215 | |
| 12 | 125 | 160 | 450 | 80.0 | 104 | 233 | 310 | 62.0 | 84.0 | 117 | 155 | 230 | 320 | |
| 14 | 160 | 205 | 572 | 105 | 140 | 298 | 400 | 80.0 | 100 | 149 | 200 | 325 | 400 | |
| 16 | 206 | 276 | 132 | 174 | 390 | 520 | 100 | 135 | 195 | 260 | 412 | 550 | ||
| 18 | 260 | 340 | 167 | 219 | 495 | 660 | 126 | 167 | 248 | 330 | 510 | 690 | ||
| 20 | 320 | 420 | 210 | 275 | 610 | 810 | 160 | 206 | 305 | 405 | 640 | 830 | ||
| 22 | 394 | 520 | 735 | 980 | 197 | 260 | 368 | 490 | 787 | 1040 | ||||
| 24 | 460 | 600 | 298 | 392 | 875 | 1170 | 238 | 300 | 438 | 585 | 890 | 1200 | ||
| 26 | 550 | 729 | 1030 | 1370 | 275 | 365 | 515 | 685 | ||||||
| 30 | 734 | 975 | 1370 | 1830 | 367 | 488 | 685 | 915 | ||||||
| 36 | 1062 | 1412 | 1970 | 2630 | 531 | 706 | 985 | 1315 | ||||||
Ahmer Steel is a top manufacturer and supplier of high-quality Low Temperature Carbon Steel A420 WPL6 Pipe Fittings products in Manama, Bahrain. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.
You will typically find these fittings hard at work in systems that transport gases or liquids at very low temperatures. They are indispensable in the petrochemical and refrigeration industries, often used in plants that process liquefied natural gas (LNG) or other cryogenic fluids. Their reliability also makes them a preferred choice for offshore platforms and in industrial refrigeration units where consistent performance under thermal stress is paramount. Essentially, anywhere a pipeline must remain secure and leak-free despite extreme cold, A420 WPL6 fittings provide the necessary assurance and safety.
