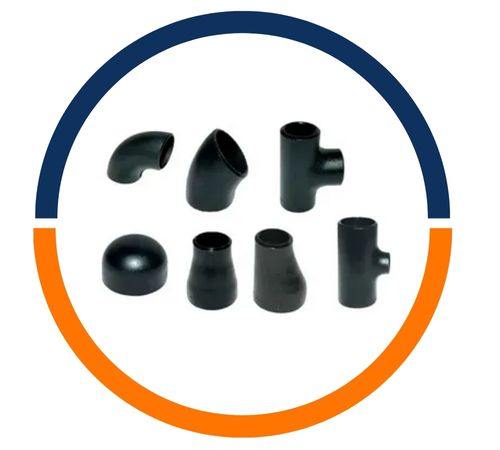

Located in the industrial heart of Manama, Ahmer Steel has established itself as a trusted partner for robust and reliable piping solutions. Specializing in the supply of high-performance materials, we pride ourselves on providing clients with top-tier Carbon Steel WPHY 56 Pipe Fittings. These components are engineered to meet the rigorous demands of modern industrial projects, ensuring strength and durability where it matters most. Our commitment is to deliver not just a product, but a foundation for safe and efficient operations across Bahrain and beyond.
Crafted for exceptional performance, these Carbon Steel WPHY 56 fittings are defined by their composition and strength. The material is a carbon-manganese steel, alloyed to provide enhanced mechanical properties. This results in a fitting with a minimum yield strength of 56,000 psi, offering remarkable toughness and resistance to deformation under high pressure. This robust construction ensures they can handle significant stress and strain, making them a dependable choice for demanding systems where integrity is non-negotiable.
| Specifications | ASTM A860/ ASME SA860 |
|---|---|
| Grade | API 5L X56 |
| Dimension | ASME/ ANSI B16.9 | ASME B16.28 | MSS-SP-43 | BS1560 | BS4504 | BS10 |
| Thickness of Fitting | SCH10, SCH 20, SCH30, STD SCH40, SCH80, SCH60, XS, SCH100, SCH 120, SCH140, SCH 160, XXS available with NACE MR 01-75 |
| Size Range | Seamless Butt-Weld Fitting: From 1/2″ – 10″ Welded ButtWeld Fitting: From 1/2″ – 48″ |
| Bending Radius | Radius=1 D, 2D, 3 D, 5D, 6D, 8 D, 10D |
| Types | Welded | Seamless | Fabricated |
| Process of Manufacturing | Push, Press, Cast, Forge. |
| Grade | Cr | C | Cu | Mn | Cb | S | P | V | Si | Ni | Mo | Ti |
| A860 WPHY 52 Fitting | 0.30 | 0.20 | 0.35 | 1.00-1.45 | 0.06 | 0.03 | 0.01 | 0.10 | 0.15-0.40 | 0.50 | 0.25 | 0.05 |
| Fittings Element | Tensile Strength | Elongation | Yield Strength (0.2%Offset) |
| X56 | 515-690 | 28 % | 66 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Nominal Pipe Size | Outside Diameter | Caps | Straight Tees | Straight Crosses | Stub Ends | |||
| inch | mm | inch | Length (inch) | Center to End (inch) | Center to End (inch) | Lap Diameter (inch) | Long Length (inch) | Short Length (inch) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
Ahmer Steel is a top manufacturer and supplier of high-quality Carbon Steel WPHY 56 Pipe Fittings products in Manama, Bahrain. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.
The true value of these WPHY 56 fittings is realized in their wide-ranging applications, particularly within the energy sector. They are ideally suited for high-strength piping systems in oil and gas refineries, petrochemical plants, and power generation facilities. You will typically find them connecting critical pipelines that transport oil, gas, and other process fluids under substantial pressure. Their reliable performance makes them essential for ensuring the safety and continuity of operations in environments where failure is not an option, from offshore platforms to large-scale industrial complexes.
Ahmer Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Manama, Bahrain.
