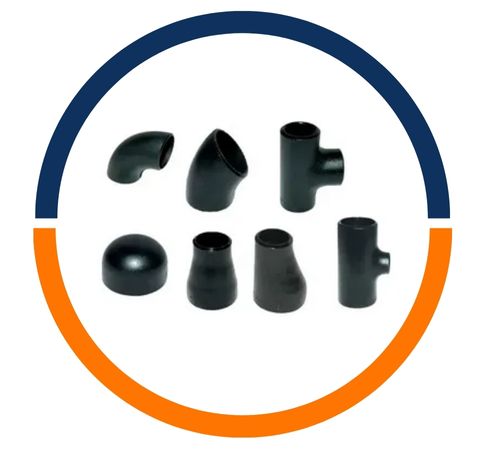

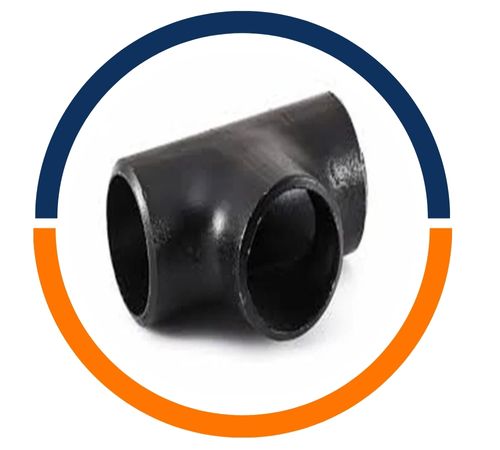

Nestled in the heart of Manama’s industrial landscape, Ahmer Steel has established itself as a trusted partner for robust and reliable piping solutions. We take pride in providing high-performance Carbon Steel WPHY 52 Pipe Fittings, engineered to meet the stringent demands of modern infrastructure. Our commitment is to deliver not just a product, but a foundation of strength and durability for your most critical projects, ensuring seamless integration and long-lasting performance in even the most challenging environments.
The strength of these WPHY 52 fittings comes from a carefully balanced composition primarily of carbon, manganese, and silicon, with trace elements enhancing their properties. This formulation yields impressive mechanical characteristics, including a minimum yield strength of 52,000 psi, which allows them to withstand immense pressure without deforming. Combined with excellent tensile strength and good ductility, these fittings offer a resilient solution that can handle significant stress and impact, making them a dependable choice for high-pressure systems.
Specifications : A- 860 or MSS SP75
Standard : ASTM A860 / ASME SA860
Size : ½”NB to 48″NB in Sch 10s, 40s, 80s, 160s, XXS.
Schedules :Sch.40 to Sch.XXs
Type : Seamless / Welded / Fabricated
| Grade | C | Mn | S | P | Si | Ni | Cr | Mo | Cu | Ti | V | Cb | Al |
| WPHY 52 | 0.20 | 1.00-1.45 | 0.03 | 0.01 | 0.15-0.40 | 0.50 | 0.30 | 0.25 | 0.35 | 0.05 | 0.10 | 0.06 |
| Element | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| WPHY 52 | 515-690 | 66 | 28 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Nominal Pipe Size | Outside Diameter | Caps | Straight Tees | Straight Crosses | Stub Ends | |||
| inch | mm | inch | Length (inch) | Center to End (inch) | Center to End (inch) | Lap Diameter (inch) | Long Length (inch) | Short Length (inch) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
Ahmer Steel is a top manufacturer and supplier of high-quality Carbon Steel WPHY 52 Pipe Fittings products in Manama, Bahrain. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.
These pipe fittings are essential in sectors where failure is not an option. You will find them forming the backbone of high-pressure transmission pipelines carrying oil and natural gas across vast distances. They are equally crucial in complex refinery and petrochemical plant piping, power generation facilities, and industrial processing systems. Their reliability makes them suitable for both above-ground installations and more demanding subsea applications, effectively managing the flow of critical resources in some of the world’s most challenging industrial settings.
Ahmer Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Manama, Bahrain.
