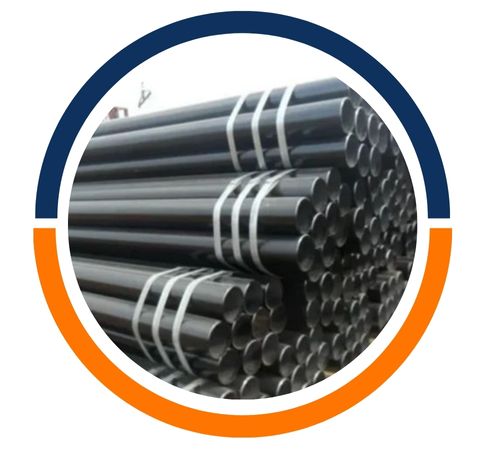

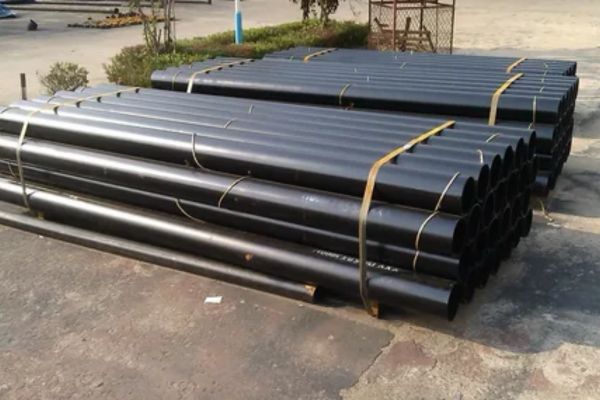

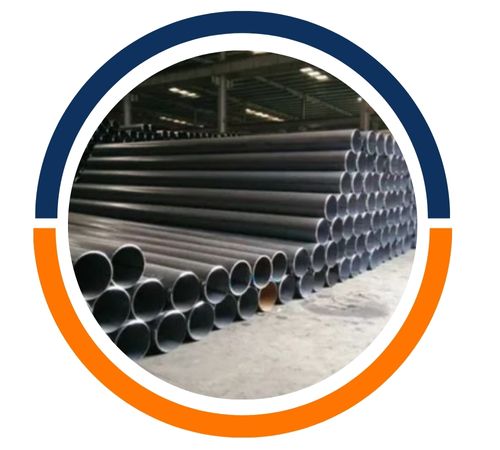

Settled in the commercial heart of Manama, Ahmer Steel has built its reputation on being a trusted partner for industrial supply, with a dedicated focus on precision steel tubing. We take pride in offering a specialized range of ERW tubing certified to the exacting EN10305-2 and EN10305-3 standards. This commitment ensures our clients receive products engineered for reliability and consistency, perfectly suited for the demanding applications that define industries across Bahrain and beyond, all backed by our local expertise and responsive service.
These tubes are defined by their strict chemical composition and superior mechanical properties, achieved through a meticulously controlled manufacturing process. This results in a product with excellent tensile strength, consistent wall thickness, and remarkable dimensional accuracy. The smooth interior finish and inherent structural integrity make these tubes ideal for systems requiring high performance under pressure, ensuring longevity and operational efficiency in both hydraulic and pneumatic applications.
| Steel Name | Steel Number | C max, % max. | Si max, % max. | Mn max, % max. | P max, % max. | S max, % max. |
| E155 | 1.0033 | 0,11 | 0.35 | 0.70 | 0.025 | 0.025 |
| E195 | 1.0034 | 0,15 | 0.35 | 0.70 | 0.025 | 0.025 |
| E235 | 1.0308 | 0,17 | 0.35 | 1.20 | 0.025 | 0.025 |
| E275 | 1.0225 | 0,21 | 0.35 | 1.40 | 0.025 | 0.025 |
| E355 | 1.0580 | 0,22 | 0.55 | 1.60 | 0.025 | 0.025 |
| Steel Name | Â Â Steel Grade | Cold Drawn /Â Hard | Cold Drawn /Â Soft | Â Â Cold Drawn & stress relieved | Â Â Annealed | Â Â Normalised | |||||||
| Rm, Mpa (N/mm2) |
A, % |
Rm, Mpa (N/mm2) |
A, % |
Rm, Mpa (N/mm2) | ReH, MPa (N/mm2) |
A, % |
Rm, Mpa (N/mm2) | A, % | Rm, Mpa (N/mm2) | ReH, MPa (N/mm2) |
A, % |
||
|
E155 |
1.0033 |
400 |
6 |
350 |
10 |
350 |
245 |
18 |
260 |
28 |
270 – 410 |
155 |
28 |
|
E195 |
1.0034 |
420 |
6 |
370 |
10 |
370 |
260 |
18 |
290 |
28 | 300 – 440 |
195 |
28 |
|
E235 |
1.0308 |
490 |
6 |
440 |
10 |
440 |
325 |
14 |
315 |
25 | 340 – 480 |
235 |
25 |
|
E275 |
1.0225 |
560 |
5 |
510 |
8 |
510 |
375 |
12 |
390 |
21 |
410 – 550 |
275 |
21 |
|
E355 |
1.0580 |
640 |
4 |
590 |
6 |
590 |
435 |
10 |
450 |
22 | 490 – 630 |
355 |
22 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is a leading manufacturer and distributor of high-quality EN10305-2 / EN10305-3 ERW Tubing in Manama, Bahrain. We provide premium steel materials and a diverse range of products, including Alloy Steel, Carbon Steel, Mild Steel, and Galvanized Steel. Our extensive inventory features Tubes, Pipes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Dedicated to fast delivery and exceptional customer service, we source top-grade raw materials to ensure superior precision, strength, and durability for demanding industrial applications. Contact us today for all your EN10305-2 / EN10305-3 ERW Tubing needs!
|
Hot rolled |
Outside Diameter, mm |
Tolerance, mm |
|
OD≤101.6 |
+0.4/-0.8 |
|
|
101.6＜OD≤177.8 |
+0.4/-1.2 |
|
|
Cold Drawn |
Outside Diameter, mm |
Tolerance, mm |
|
OD＜25.4 |
±0.10 |
|
|
25.4≤OD≤38.1 |
±0.15 |
|
|
38.1＜OD＜50.8 |
±0.20 |
|
|
50.8≤OD＜63.5 |
±0.25 |
|
|
63.5≤OD＜76.2 |
±0.30 |
|
|
76.2≤OD≤101.6 |
±0.38 |
|
|
101.6＜OD≤177.8 |
+0.38/-0.64 |
|
|
Hot rolled
|
Outside Diameter, mm |
Tolerance, % |
|
OD≤101.6, WT≤2.4 |
+40/-0 |
|
|
OD≤101.6, 2.4＜WT≤3.8 |
+35/-0 |
|
|
OD≤101.6, 3.8＜WT≤4.6 |
+33/-0 |
|
|
OD≤101.6, WT>4.6 |
+28/-0 |
|
|
OD>101.6, 2.4＜WT≤3.8 |
+35/-0 |
|
|
OD>101.6, 3.8＜WT≤4.6 |
+33/-0 |
|
|
OD>101.6, WT>4.6 |
+28/-0 |
|
|
Cold Drawn
|
Outside Diameter, mm |
Tolerance, % |
|
OD≤38.1 |
+20/-0 |
|
|
OD>38.1 |
+22/-0 |
The versatility of EN10305-2 and EN10305-3 tubing makes it a fundamental component in countless sectors. You will find it forming the critical backbone of hydraulic and pneumatic systems in industrial machinery, as fuel and injection lines in the automotive industry, and within essential heat exchangers. Its reliability is also crucial for high-precision instrumentation and control systems. From manufacturing plants to energy sectors, these tubes deliver the dependable performance needed to keep operations running smoothly and safely.
Ahmer Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Manama, Bahrain.
