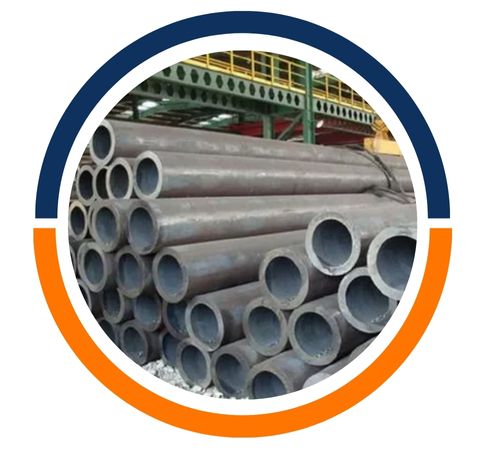

Nestled in the heart of Manama’s industrial landscape, Ahmer Steel stands as a trusted partner for high-performance piping needs. We take pride in our specialized focus on Alloy Steel P23 Pipes, offering a robust supply chain and expert knowledge to support critical projects across the region. Our commitment goes beyond mere supply; we provide reliable, high-grade materials that are meticulously sourced to ensure they meet the demanding standards required for advanced thermal and pressure applications, building lasting relationships through quality and service.
The strength of Alloy Steel P23 lies in its carefully balanced composition, which includes chromium, molybdenum, vanadium, and a controlled amount of tungsten. This specific blend is engineered to develop exceptional mechanical properties, particularly after heat treatment. This results in pipes that offer an outstanding combination of high-temperature strength, remarkable creep resistance, and good toughness. This makes them uniquely suited to withstand prolonged exposure to stress and extreme heat without compromising their structural integrity.
| Alloy Steel ASTM A335 P23 Size | : | 1/8NB TO 24NB IN |
| ASTM A335 P23 Alloy Steel Standards | : | ASTM A 335, ASME SA 335, ANSI B36.10 |

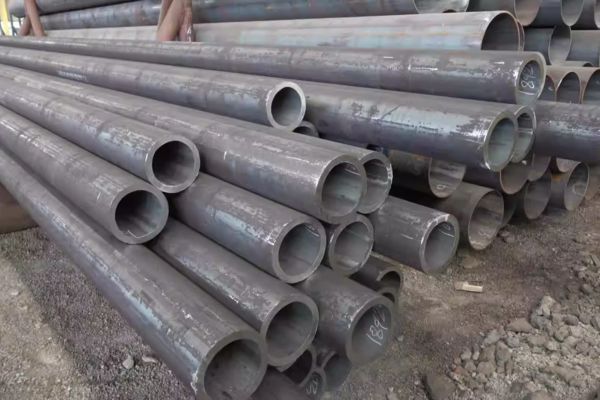

| Alloy Steel ASTM A335 P23 Type | : | Seamless |
| ASTM A335 P23 Alloy Steel Pipe Specialized in | : | Large Diameter Size |
| Alloy Steel P23 Pipes Outer Dimensions | : | 19.05mm – 114.3mm |
| ASTM A335 P23 Alloy Steel Pipe Wall Thickness | : | 2.0mm – 14 mm |
| Alloy Steel P23 Pipe Length | : | max 16000mm |
| Alloy Steel P23 Pipes Schedule | : | Schedule 20 – Schedule XXS (heavier on request) up to 250 mm thk. |

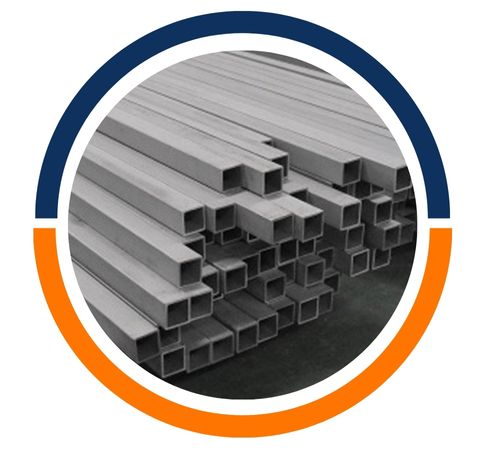

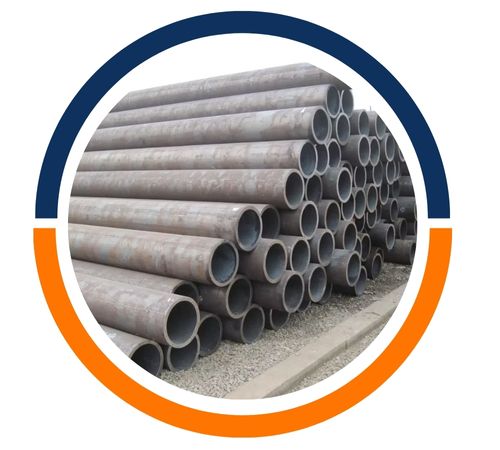

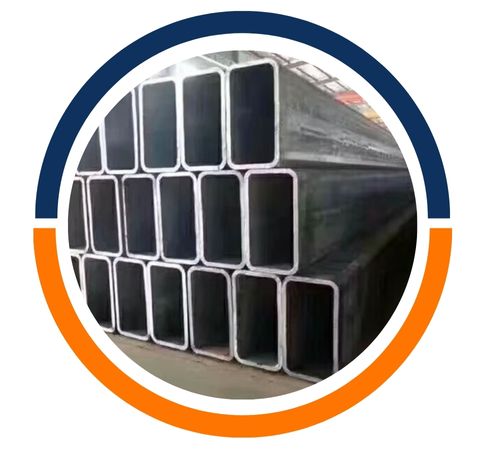

| Alloy Steel P23 Pipes Form | : | Round, Square, Rectangular, Hydraulic Etc. |
| ASTM A335 P23 Alloy Steel Pipes Length | : | Single Random, Double Random & Cut Length. |
| Alloy Steel P23 Pipes End | : | Plain End, Beveled End, Treaded |
| C, % | Mn, % | P, % | S, % | Si, % | Cr, % | Mo, % | V, % | Nb, % | B,% | N, % | Al, % | W, % |
| 0.04-0.10 | 0.1-0.6 | 0.03 max | 0.01 max | 0.5 max | 1.9-2.6 | 0.05-0.30 | 0.20-0.30 | 0.02-0.08 | 0.0005-0.006 | 0.03 max | 0.03 max | 1.45-1.75 |
| Tensile Strength, MPa | Yield Strength, MPa | Elongation, % |
| 510 min | 400 min | 20 min |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Ahmer Steel is a major manufacturer and a supplier of premium Alloy Steel P23 pipe in Manama, the Bahrain. With specialization in steel solutions, we offer a variety of products including carbon steel, alloy steel, light steel and galvanized steel. Our wide bearing has pipes, pipes, flanges, pipe fittings, forged fittings, sheets and plates. We are famous for our reliable distribution and extraordinary customer service, and are committed to offering high quality steel materials that ensure durability and better performance in different industrial applications. We are committed to skill, and we are your reliable partners for all steel requirements.
| O.D.(mm) x Thickness(mm) | O.D(mm) x Thickness(mm) | O.D(mm) x Thickness(mm) |
|---|---|---|
| 38.1 x 3.2 | 57.0 x 4.9 | 76.2 x 4.0 |
| 38.1 x 4.0 | 57.0 x 6.3 | 76.2 x 5.0 |
| 38.1 x 6.3 | 57.0 x 7.9 | 76.2 x 6.3 |
| 42.4 x 3.2 | 60.3 x 3.2 | 82.5 x 4.5 |
| 42.4 x 4.0 | 60.3 x 3.6 | 88.9 x 3.2 |
| 44.5 x 3.2 | 60.3 x 5.0 | 88.9 x 3.6 |
| 44.5 x 6.3 | 63.5 x 3.2 | 88.9 x 4.0 |
| 48.3 x 3.2 | 63.5 x 3.6 | 101.6 x 3.6 |
| 48.3 x 3.6 | 63.5 x 4.0 | 101.6 x 4.5 |
| 50.8 x 4.5 | 63.5 x 6.3 | 101.6 x 6.3 |
| 51.0 x 3.2 | 63.5 x 7.9 | 114.3 x 3.6 |
| 51.0 x 3.6 | 70.0 x 3.2 | 114.3 x 5.0 |
| 51.0 x 6.3 | 70.0 x 3.6 | 139.7 x 4.0 |
| 57.0 x 3.2 | 70.0 x 6.3 | 139.7 x 5.0 |
| 57.0 x 3.6 | 76.2 x 3.6 | 139.7 x 6.3 |
| Size NPS | Pipe O.D. | Wall Thickness | Pipe I.D. | Weight per Foot | Standard to XXHY | Schedule Pipe # | Section Modulus | Gallon Capacity Per Linear Foot |
| 1/2 | 0.84 | 0.109 | 0.622 | 0.85 | STD | 40 | .0407 | .0158 |
| Â | Â | 0.147 | 0.546 | 1.09 | XHY | 80 | .0478 | .0122 |
| Â | Â | 0.188 | 0.464 | 1.31 | Â | 160 | .0528 | .0088 |
| Â | Â | 0.294 | 0.252 | 1.72 | XXHY | Â | .0577 | .0026 |
| 3/4 | 1.05 | 0.113 | 0.824 | 1.13 | STD | 40 | .0705 | .0277 |
| Â | Â | 0.154 | 0.742 | 1.48 | XHY | 80 | .0853 | .0225 |
| Â | Â | 0.219 | 0.612 | 1.95 | Â | 160 | .1006 | .0153 |
| Â | Â | 0.308 | 0.434 | 2.44 | XXHY | Â | .1103 | .0077 |
| 1 | 1.315 | 0.133 | 1.049 | 1.68 | STD | 40 | .1328 | .0449 |
| Â | Â | 0.179 | 0.957 | 2.17 | XHY | 80 | .1606 | .0374 |
| Â | Â | 0.250 | 0.815 | 2.85 | Â | 160 | .1904 | .0271 |
| Â | Â | 0.358 | 0.599 | 3.66 | XXHY | Â | .2136 | .0146 |
| 1 1/4 | 1.66 | 0.140 | 1.380 | 2.27 | STD | 40 | .2346 | .0777 |
| Â | Â | 0.191 | 1.278 | 3.00 | XHY | 80 | .2913 | .0666 |
| Â | Â | 0.250 | 1.160 | 3.77 | Â | 160 | .3421 | .0549 |
| Â | Â | 0.382 | 0.896 | 5.22 | Â | Â | .4110 | .0328 |
| 1 1/2 | 1.90 | 0.145 | 1.610 | 2.72 | STD | 40 | .3262 | .1058 |
| Â | Â | 0.200 | 1.500 | 3.63 | XHY | 80 | .4118 | .0918 |
| Â | Â | 0.281 | 1.338 | 4.86 | Â | 160 | .5079 | .0730 |
| Â | Â | 0.400 | 1.100 | 6.41 | Â | Â | .5977 | .0494 |
| 2 | 2.375 | 0.109 | 2.157 | 2.64 | Â | 10 | .4205 | .1898 |
| Â | Â | 0.154 | 2.067 | 3.66 | STD | 40 | .5606 | .1743 |
| Â | Â | 0.218 | 1.939 | 5.03 | XHY | 80 | .7309 | .1534 |
| Â | Â | 0.250 | 1.875 | 5.68 | Â | Â | .8045 | .1434 |
| Â | Â | 0.281 | 1.813 | 6.29 | Â | Â | .8666 | .1344 |
| Â | Â | 0.344 | 1.687 | 7.47 | Â | 160 | .9806 | .1161 |
| Â | Â | 0.436 | 1.503 | 9.04 | XXHY | Â | 1.1043 | .0922 |
| 2 1/2 | 2.875 | 0.120 | 2.635 | 3.53 | Â | 10 | .6870 | .2833 |
| Â | Â | 0.203 | 2.469 | 5.80 | STD. | 40 | 1.0640 | .2487 |
| Â | Â | 0.216 | 2.443 | 6.14 | Â | Â | 1.1169 | .2435 |
| Â | Â | 0.250 | 2.375 | 7.02 | Â | Â | 1.2468 | .2301 |
| Â | Â | 0.276 | 2.323 | 7.67 | XHY | 80 | 1.3386 | .2202 |
| Â | Â | 0.375 | 2.125 | 10.02 | Â | 160 | 1.6371 | .1842 |
| Â | Â | 0.552 | 1.771 | 13.71 | XXXHY | Â | 1.9971 | .1280 |
| 3 | 3.50 | 0.120 | 3.260 | 4.34 | Â | Â | 1.0411 | .4336 |
| Â | Â | 0.156 | 3.188 | 5.58 | Â | Â | 1.3122 | .4147 |
| Â | Â | 0.172 | 3.156 | 6.12 | Â | Â | 1.4265 | .4064 |
| Â | Â | 0.188 | 3.124 | 6.66 | Â | Â | 1.5342 | .3984 |
| Â | Â | 0.216 | 3.068 | 7.58 | STD. | 40 | 1.7241 | .3840 |
| Â | Â | 0.250 | 3.000 | 8.69 | Â | Â | 1.9372 | .3672 |
| Â | Â | 0.281 | 2.938 | 9.67 | Â | Â | 2.1207 | .3521 |
| Â | Â | 0.300 | 2.900 | 10.26 | XHY | 80 | 2.2253 | .3431 |
| Â | Â | 0.438 | 2.624 | 14.34 | Â | 160 | 2.8774 | .2811 |
| Â | Â | 0.600 | 2.300 | 18.6 | XXHY | Â | 3.4243 | .2158 |
| 3 1/2 | 4.0 | 0.120 | 3.760 | 4.98 | Â | 10 | 1.3776 | .5768 |
| Â | Â | 0.226 | 3.548 | 9.12 | STD. | 140 | 2.3939 | .5136 |
| Â | Â | 0.250 | 3.500 | 10.02 | Â | Â | 2.6001 | .4998 |
| Â | Â | 0.281 | 3.438 | 11.17 | Â | Â | 2.8562 | .4821 |
| Â | Â | 0.318 | 3.364 | 12.52 | XHY | 80 | 3.1400 | .4617 |
| Â | Â | 0.636 | 2..728 | 22.87 | XXHY | Â | 4.8795 | .3085 |
| 4 | 4.5 | 0.120 | 4.260 | 5.62 | Â | 10 | 1.7612 | .7404 |
| Â | Â | 0.156 | 4.188 | 7.24 | Â | Â | 2.2354 | .7156 |
| Â | Â | 0.188 | 4.124 | 8.67 | Â | Â | 2.6296 | .6942 |
| Â | Â | 0.203 | 4.094 | 9.32 | Â | Â | 2.8173 | .6838 |
| Â | Â | 0.219 | 4.062 | 10.02 | Â | Â | 3.0184 | .6725 |
| Â | Â | 0.237 | 4.026 | 10.80 | STD. | 40 | 3.2145 | .6613 |
| Â | Â | 0.250 | 4.000 | 11.36 | Â | Â | 3.3611 | .6528 |
| Â | Â | 0.281 | 3.938 | 12.67 | Â | 60 | 3.7021 | .6326 |
| Â | Â | 0.312 | 3.876 | 13.97 | Â | Â | 4.0273 | .6126 |
| Â | Â | 0.337 | 3.826 | 15.00 | XHY | 80 | 4.2713 | .5972 |
| Â | Â | 0.438 | 3.624 | 19.02 | Â | 120 | 5.1790 | .5361 |
| Â | Â | 0.531 | 3.438 | 22.53 | Â | 160 | 5.8997 | .4822 |
| Â | Â | 0.674 | 3.152 | 27.57 | XXHY | Â | 6.7927 | .4054 |
| 5 | 5.563 | 0.188 | 5.187 | 10.80 | Â | Â | 4.1161 | 1.0979 |
| Â | Â | 0.219 | 5.125 | 12.51 | Â | Â | 4.7279 | 1.0716 |
| Â | Â | 0.258 | 5.047 | 14.63 | STD. | 40 | 5.4500 | 1.0391 |
| Â | Â | 0.281 | 5.001 | 15.87 | Â | Â | 5.8644 | 1.0204 |
| Â | Â | 0.312 | 4.939 | 17.51 | Â | Â | 6.4074 | .99647 |
| Â | Â | 0.344 | 4.875 | 19.19 | Â | Â | 6.9358 | .9696 |
| Â | Â | 0.375 | 4.813 | 20.80 | XHY | 80 | 7.4300 | .9449 |
| Â | Â | 0.500 | 4.563 | 27.06 | Â | 120 | 9.2534 | .8495 |
| Â | Â | 0.625 | 4.313 | 32.99 | Â | 160 | 10.7976 | .7590 |
| Â | Â | 0.750 | 4.063 | 38.59 | XXHY | Â | 12.0954 | .6734 |
| 6 | 6.625 | 0.109 | 6.407 | 7.59 | Â | 5 | 3.5769 | 1.6748 |
| Â | Â | 0.134 | 6.357 | 9.30 | Â | 10 | 4.3475 | 1.6488 |
| Â | Â | 0.156 | 6.313 | 10.79 | Â | Â | 5.0107 | 1.6260 |
| Â | Â | 0.188 | 6.249 | 12.94 | Â | Â | 5.9351 | 1.5937 |
| Â | Â | 0.203 | 6.219 | 13.94 | Â | Â | 6.3804 | 1.5780 |
| Â | Â | 0.219 | 6.187 | 15.00 | Â | Â | 6.8261 | 1.5620 |
| Â | Â | 0.250 | 6.125 | 17.04 | Â | Â | 7.6905 | 1.5306 |
| Â | Â | 0.280 | 6.065 | 18.99 | STD. | 40 | 8.4958 | 1.5008 |
| Â | Â | 0.312 | 6.001 | 21.06 | Â | Â | 9.3416 | 1.4688 |
| Â | Â | 0.344 | 5.937 | 23.10 | Â | Â | 10.111 | 1.4391 |
| Â | Â | 0.375 | 5.875 | 25.05 | Â | Â | 10.893 | 1.4082 |
| Â | Â | 0.432 | 5.761 | 28.60 | XHY | 80 | 12.224 | 1.3541 |
| Â | Â | 0.500 | 5.625 | 32.74 | Â | Â | 13.711 | 1.2909 |
| Â | Â | 0.562 | 5.501 | 36.43 | Â | 120 | 14.9806 | 1.2346 |
| Â | Â | 0.625 | 5.375 | 40.09 | Â | Â | 16.1821 | 1.1787 |
| Â | Â | 0.719 | 5.187 | 45.39 | Â | 160 | 17.8243 | 1.0977 |
| Â | Â | 0.864 | 4.897 | 53.21 | XXHY | Â | 20.025 | .9784 |
| Â | Â | 1.000 | 4.625 | 60.13 | Â | Â | 21.7719 | .8727 |
| Â | Â | 1.125 | 4.375 | 66.14 | Â | Â | 23.1237 | .7809 |
These specialized pipes are indispensable in environments where heat and pressure are constant challenges. You will find Alloy Steel P23 Pipes forming the backbone of powerful superheater and reheater systems in modern power plants, as well as in critical pipelines within petrochemical facilities. Their ability to perform reliably under strenuous conditions makes them a preferred choice for heat exchangers and various high-temperature pressure vessels, effectively ensuring the safety and efficiency of the most demanding industrial operations.
Ahmer Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Manama, Bahrain.
