Nestled in the heart of Manama, Bahrain, Ahmer Steel stands as a trusted name in the industrial supply sector, dedicated to meeting the rigorous demands of modern infrastructure. We are proud to specialize in high-performance Carbon Steel API X60 5L PSL 2 Pipes, engineered to excel in challenging environments. Our commitment lies in providing reliable, durable solutions that form the backbone of critical energy transportation projects, ensuring strength and integrity from source to application for our clients across the region and beyond.
These pipes are crafted from a specific carbon steel composition, carefully balanced with elements like manganese and silicon to achieve optimal performance. This precise metallurgy grants the X60 grade its notable mechanical properties, including a minimum yield strength of 60,000 psi, which provides exceptional resistance to high pressures. Combined with excellent toughness and weldability, this makes the material both strong and adaptable for complex installation requirements, ensuring long-term structural reliability.
| Grade of material | X60 / L415 (N, M, Q, R) /td> |
| Standard | ISO 3183 L415/ API 5L X60 |
| API 5L X60 Seamless Pipe (OD) | 21.3 – 660mm ( Inch 1/2” – 26”) |

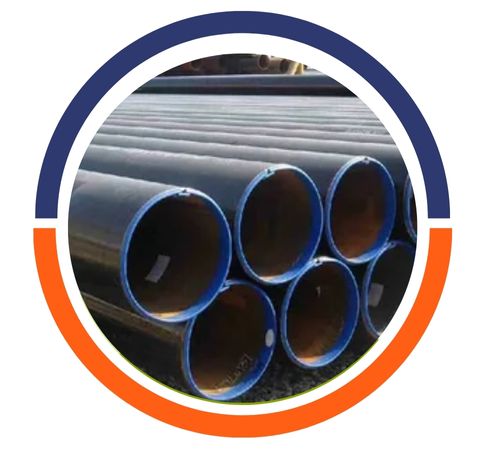

| X60 SAW | 16″ – 100″ NB |

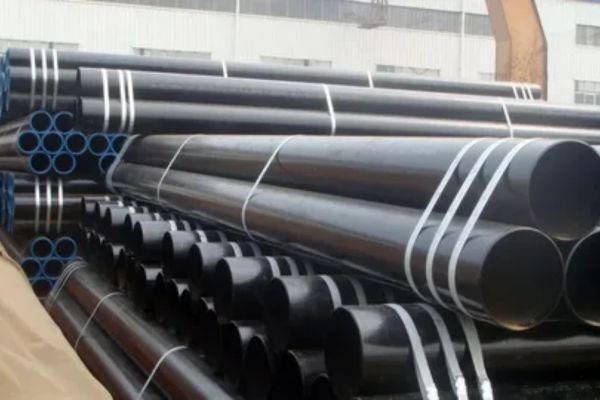

| API 5L X60 PSL2 ERW and HFW | 1/2” NB – 24” NB |

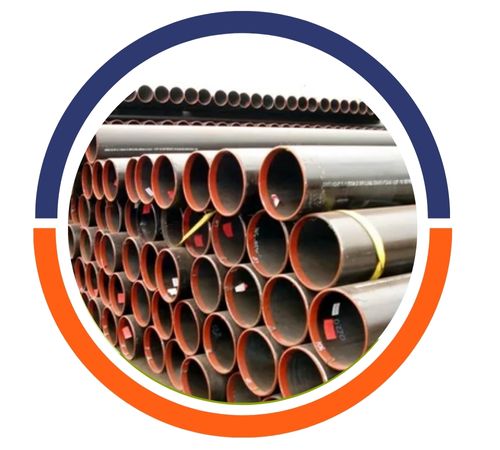

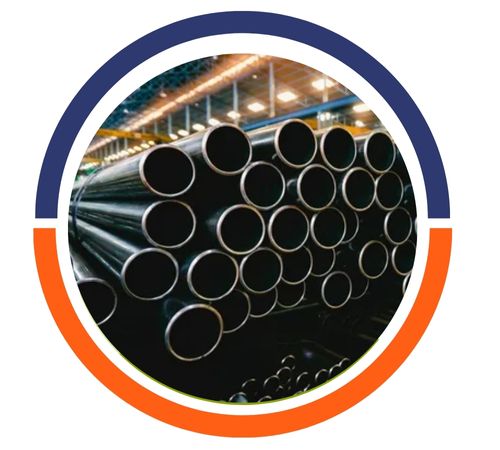

| Grade L415 X60 LSAW / DSAW | 16’OD TO 54″ OD (8 MM TO 50 MM THK) |
| API 5L X60 PSL2 Pipe end | Pub Joints, Coupling, Deburring, Flanged Ends, Grooved, Buttweld, Beveled End (BE), Square Cut, Thread Cutting, Cut Grooves, Squared Ends, Chamfering, Plain end (PE), Threaded Ends (Male & Female), Vibrator Grinding, Socket, Screwed |
| X60 Carbon Steel Pipe Length | DRL, SRL, 20FT, 40FT, Single Random Length (SRL), Double Random Length (DRL), and Fixed Length 5.8 Meter, 12.0 Meters (40FT), 6.0 Meters (20FT), 11.8 Meters |
| API 5L X60 Wall Thickness | SCH160, SCH-STD, SCH-XXS, SCH-XS, SCH40, SCH80, |
| PSL Level | |
| Coating for API 5L X60 Line Pipe | Black Painting, 3PE, lined pipe, Galvanized, CRA clad, FBE, Varnished, 3PP, 3LPE, Anti-Rust Oi, |

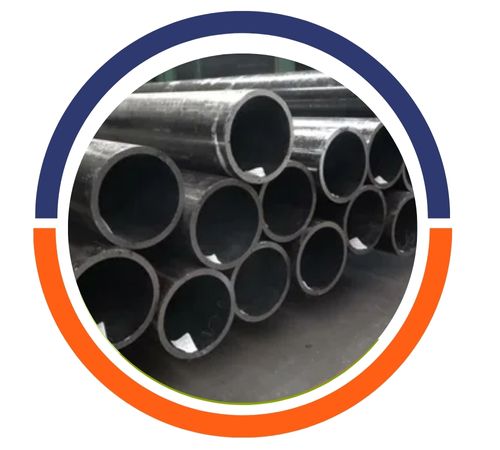

| Manufacturing process | Electro Fusion Seam Welded (EFSW), Cold Drawn Seamless (CDS), Electric Resistance Welded (ERW), Submerged Arc Welded (SAW), Welded, Longitudinally Submerged Arc Welded (LSAW), Extrusion, Seamless, Horizontal Submerged Arc Welded (HSAW), Hot Finish Seamless (HFS) |
| Approvals | KNPC, Merkblatt W0, PED, EIL, HAF 604, L&T, BP, ISO 17025 for Laboratories, IBR, NORSOK M-650, Saudi Aramco, AD2000, PED 97/23/EC, ONGC, Shell |
| Mass fraction, based upon heat and product analysis % maximum | CARBON EQUIVALENT a | ||||||||||
| % MAXIMUM | |||||||||||
| Cb | Si | Mnb | P | S | V | Nb | Ti | Other | CEIIW | CEPcm | |
| CS PIPES | |||||||||||
| X60 | 0.24f | 0.45f | 1.4f | 0.025 | 0.015 | 0.10f | 0.05 | 0.04 | g,h | 0.43 | 0.25 |
| Y.S | T.S | ELONGATION |
| Mpa(psi) | Mpa(psi) | |
| min | min | min |
| 415(60 200) | 565(81 900) | F |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| NB | DN | OD (inches) | API 5L X60 Pipe Schedule | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SCH 5 | SCH 10 | SCH 20 | SCH 30 | SCH 40 | SCH 60 | SCH 80 | SCH 100 | SCH 120 | SCH 160 | ||||
| 3/4″ | 20 | 1.05 | 0.065 | 0.11 | x | 0.095 | 0.113 | x | x | 0.17 | x | 0.219 | |
| 1″ | 25 | 1.315 | 0.065 | 0.11 | x | 0.114 | 0.133 | x | x | 0.2 | x | 0.25 | |
| 1.1/2″ | 40 | 1.9 | 0.065 | 0.11 | x | 0.125 | 0.145 | x | x | 0.225 | x | 0.281 | |
| 2″ | 50 | 2.375 | 0.065 | 0.12 | x | x | 0.154 | x | x | 0.25 | x | 0.344 | |
| 2.1/2″ | 65 | 2.875 | 0.083 | 0.12 | x | x | 0.203 | x | x | 0.3 | x | 0.375 | |
| 3″ | 80 | 3.5 | 0.083 | 0.12 | x | x | 0.216 | x | x | 0.35 | x | 0.438 | |
| 4″ | 100 | 4.5 | 0.083 | 0.12 | x | x | 0.237 | x | x | 0.437 | x | 0.531 | |
| 5″ | 125 | 5.563 | 0.109 | 0.12 | x | x | 0.258 | x | x | 0.5 | x | 0.625 | |
| 6″ | 150 | 6.625 | 0.109 | 0.13 | x | x | 0.28 | x | x | 0.562 | x | 0.719 | |
| 8″ | 200 | 8.625 | 0.109 | 0.15 | 0.25 | 0.277 | 0.322 | 0.406 | 0.593 | 0.718 | 0.812 | 0.906 | |
| 10″ | 250 | 10.75 | 0.134 | 0.17 | 0.25 | 0.307 | 0.365 | 0.5 | 0.718 | 0.843 | 1.0 | 1.125 | |
| 12″ | 300 | 12.75 | 0.165 | 0.18 | 0.25 | 0.33 | 0.406 | 0.5 | 0.843 | 1.0 | 1.125 | 1.312 | |
Ahmer Steel is a leading supplier of high-quality Carbon Steel API X60 5L PSL 2 Pipes products in Manama, Bahrain. We focus on steel solutions and offer a variety of products. This includes Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our products are Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. We are known for our good delivery and excellent customer care. We aim to provide strong and durable steel materials for many industrial uses. We work hard to meet high standards, making us a trusted partner for your steel needs.
The primary application for these robust pipes is in the construction of high-pressure transmission systems for oil and natural gas, where their strength is crucial for safe and efficient long-distance transport. Beyond the energy sector, they are also widely used in pipelines for other hydrocarbons, water distribution networks, and structural piling for major marine and industrial projects. Essentially, wherever there is a need for a conduit that can withstand immense pressure and harsh conditions, API X60 5L PSL 2 pipes prove to be an indispensable component.
Ahmer Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Manama, Bahrain.
