Ahmer Steel, based in Manama, Bahrain, stands as a trusted partner in the region for its commitment to quality and reliability in the steel industry. We take pride in supplying robust materials engineered for demanding applications, with our Carbon Steel API X56 5L PSL 1 Pipes being a prime example of this dedication. These pipes are crafted to meet the rigorous standards required for the safe and efficient transport of resources, offering our clients a dependable solution backed by our local expertise and global supply chain capabilities.
The composition of these API X56 pipes is carefully balanced, primarily featuring iron with carbon and manganese as key strengthening elements. This specific chemistry gives the pipes their notable mechanical strength, ensuring they can handle substantial internal pressures. They are designed to yield at a minimum of 56,000 psi, providing a strong yet manageable material for fabrication. This combination of a thoughtful alloy mix and proven toughness makes them a reliable choice for long-term project integrity.
| Grade of material | X56 / L390 (N, M, Q, R) |
| Standard | ISO 3183 L390/ API 5L X56 |
| API 5L X56 Seamless Pipe (OD) | 21.3 – 660mm ( Inch 1/2” – 26”) |

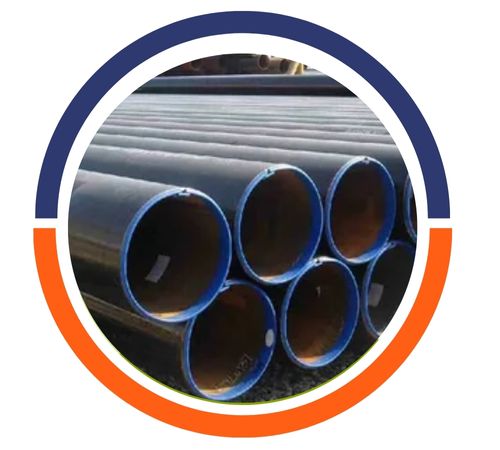

| X56 SAW | 16″ – 100″ NB |

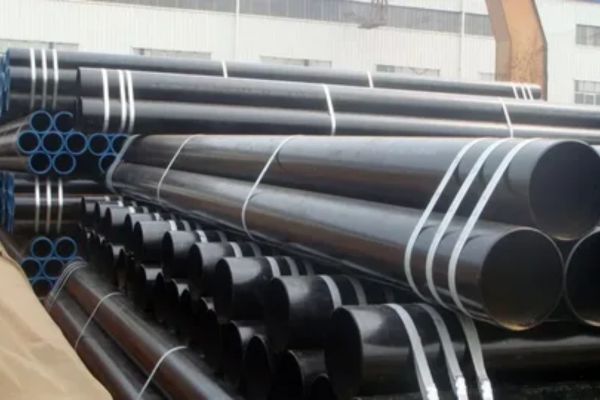

| API 5L X56 PSL1 ERW and HFW | 1/2” NB – 24” NB |

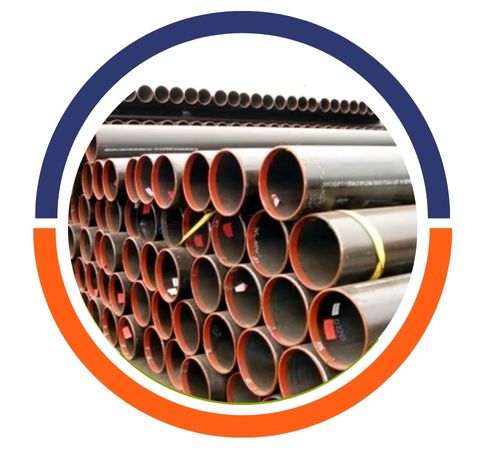

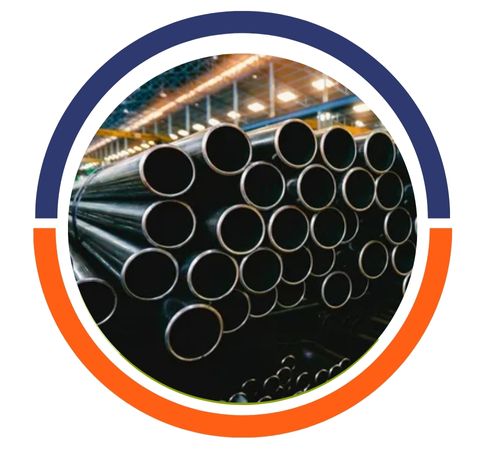

| X56 Steel LSAW / DSAW | 16’OD TO 54″ OD (8 MM TO 50 MM THK) |
| API 5L X56 PSL1 Pipe end | Square Cut, Buttweld, Pub Joints, Squared Ends, Thread Cutting, Socket, Cut Grooves, Coupling, Deburring, Vibrator Grinding, Plain end (PE), Chamfering, Threaded Ends (Male & Female), Screwed, Beveled End (BE), Flanged Ends, Grooved |
| X56 Carbon Steel Pipe Length | DRL, SRL, 20FT, 40FT, Single Random Length (SRL), Double Random Length (DRL), and Fixed Length 5.8 Meter, 12.0 Meters (40FT), 6.0 Meters (20FT), 11.8 Meters, |
| API 5L X56 Wall Thickness | SCH80, SCH160, SCH-XS, SCH-XXS, SCH-STD, SCH40, |
| PSL Level | |
| Coating for API 5L X56 Line Pipe | Black Painting, CRA clad, 3PE, 3PP, 3LPE, FBE, Galvanized, lined pipe, Anti-Rust Oil, Varnished, |
| Mass fraction, based upon heat and product analysis a | |||||||
| PIPE | |||||||
| C | Mn | P | S | V | Nb | Ti | |
| maxb | max.b | min. | max. | max. | max. | max. | max. |
| 0.28 | 1.40 | – | 0.030 | 0.030 | d | d | d |
| .S | T.S | ELONGATION |
| Mpa(psi) | Mpa(psi) | |
| min | min | min |
| 390(56 600) | 490(71 100) | F |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| NPS (in) | Outside Diameter (in) | API 5L X56 Pipe Schedule | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SCH 10 | SCH 20 | SCH 30 | SCH STD | SCH 40 | SCH 60 | SCH XS | SCH 80 | SCH 100 | SCH 120 | SCH 140 | SCH 160 | SCH XXS | ||
| Wall Thickness (in) | ||||||||||||||
| 1/8 | 0.405 | 0.068 | 0.068 | 0.095 | 0.095 | |||||||||
| 1/4 | 0.540 | 0.088 | 0.088 | 0.119 | 0.119 | |||||||||
| 3/8 | 0.675 | 0.091 | 0.091 | 0.126 | 0.126 | |||||||||
| 1/2 | 0.840 | 0.109 | 0.109 | 0.147 | 0.147 | 0.187 | 0.294 | |||||||
| 3/4 | 1.050 | 0.113 | 0.113 | 0.154 | 0.154 | 0.219 | 0.308 | |||||||
| 1 | 1.315 | 0.133 | 0.133 | 0.179 | 0.179 | 0.250 | 0.358 | |||||||
| 1 1/4 | 1.660 | 0.140 | 0.140 | 0.191 | 0.191 | 0.250 | 0.382 | |||||||
| 1 1/2 | 1.900 | 0.145 | 0.145 | 0.200 | 0.200 | 0.281 | 0.400 | |||||||
| 2 | 2.375 | 0.154 | 0.154 | 0.218 | 0.218 | 0.344 | 0.436 | |||||||
| 2 1/2 | 2.875 | 0.203 | 0.203 | 0.276 | 0.276 | 0.375 | 0.552 | |||||||
| 3 | 3.500 | 0.216 | 0.216 | 0.300 | 0.300 | 0.438 | 0.600 | |||||||
| 3 1/2 | 4.000 | 0.226 | 0.226 | 0.318 | 0.318 | |||||||||
| 4 | 4.500 | 0.237 | 0.237 | 0.337 | 0.337 | 0.438 | 0.531 | 0.674 | ||||||
| 5 | 5.563 | 0.258 | 0.258 | 0.375 | 0.375 | 0.500 | 0.625 | 0.750 | ||||||
| 6 | 6.625 | 0.280 | 0.280 | 0.432 | 0.432 | 0.562 | 0.719 | 0.864 | ||||||
| 8 | 8.625 | 0.250 | 0.277 | 0.322 | 0.322 | 0.406 | 0.500 | 0.500 | 0.594 | 0.719 | 0.812 | 0.906 | 0.875 | |
| 10 | 10.750 | 0.250 | 0.307 | 0.365 | 0.365 | 0.500 | 0.500 | 0.594 | 0.719 | 0.844 | 1.000 | 1.125 | 1.000 | |
| 12 | 12.750 | 0.250 | 0.330 | 0.375 | 0.406 | 0.562 | 0.500 | 0.688 | 0.844 | 1.000 | 1.125 | 1.312 | 1.000 | |
| 14 | 14.000 | 0.250 | 0.312 | 0.375 | 0.375 | 0.438 | 0.594 | 0.500 | 0.750 | 0.938 | 1.094 | 1.250 | 1.406 | |
| 16 | 16.000 | 0.250 | 0.312 | 0.375 | 0.375 | 0.500 | 0.656 | 0.500 | 0.844 | 1.031 | 1.219 | 1.438 | 1.594 | |
| 18 | 18.000 | 0.250 | 0.312 | 0.438 | 0.375 | 0.562 | 0.750 | 0.500 | 0.938 | 1.156 | 1.375 | 1.562 | 1.781 | |
| 20 | 20.000 | 0.250 | 0.375 | 0.500 | 0.375 | 0.594 | 0.812 | 0.500 | 1.031 | 1.281 | 1.500 | 1.750 | 1.969 | |
| 22 | 22.000 | 0.250 | 0.375 | 0.500 | 0.375 | 0.875 | 0.500 | 1.125 | 1.375 | 1.625 | 1.875 | 2.125 | ||
| 24 | 24.000 | 0.250 | 0.375 | 0.562 | 0.375 | 0.688 | 0.969 | 0.500 | 1.219 | 1.531 | 1.812 | 2.062 | 2.344 | |
| 30 | 30.000 | 0.312 | 0.500 | 0.625 | 0.375 | 0.500 | ||||||||
| 32 | 32.000 | 0.312 | 0.500 | 0.625 | 0.375 | 0.688 | ||||||||
| 34 | 34.000 | 0.312 | 0.500 | 0.625 | 0.375 | 0.688 | ||||||||
| 36 | 36.000 | 0.312 | 0.500 | 0.625 | 0.375 | 0.750 | ||||||||
| 42 | 42.000 | 0.500 | 0.625 | 0.375 | 0.750 | |||||||||
Ahmer Steel is a leading supplier of high-quality Carbon Steel API X56 5L PSL 1 Pipes products in Manama, Bahrain. We focus on steel solutions and offer a variety of products. This includes Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our products are Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. We are known for our good delivery and excellent customer care. We aim to provide strong and durable steel materials for many industrial uses. We work hard to meet high standards, making us a trusted partner for your steel needs.
These API X56 pipes are fundamental to the infrastructure of the energy sector, primarily serving as the backbone for gathering and transmission lines in oil and natural gas projects. Their reliable performance also makes them suitable for other demanding industrial uses, including pipelines for water or slurry and for structural piling in construction. Whether deployed onshore or in shallow offshore environments, they provide a durable and cost-effective solution for engineers who need a material that consistently performs under pressure.
