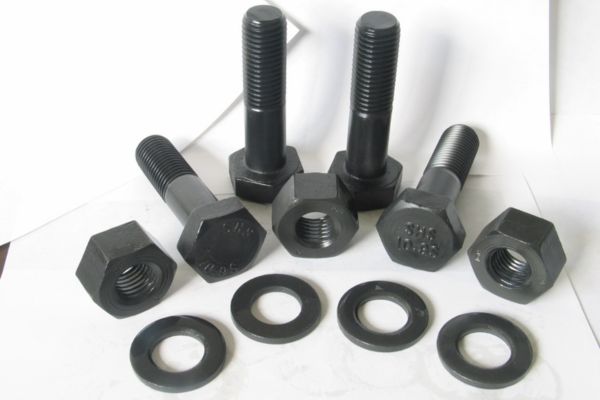

Nestled in the heart of Manama’s bustling industrial scene, Ahmer Steel has built a strong reputation as a trusted partner for high-grade materials. We specialize in providing Carbon Steel 12.9 Fasteners, a product line synonymous with unwavering reliability and exceptional strength. Understanding the critical demands of modern construction and manufacturing, we ensure our clients have direct access to fasteners that are engineered for the most challenging applications, offering a solid foundation for projects where failure is simply not an option.
The exceptional performance of these fasteners starts with their precise composition, primarily a carbon steel alloyed with elements like chromium and molybdenum. This recipe is meticulously processed through quenching and tempering, a heat treatment that unlocks their renowned mechanical properties. This results in a minimum tensile strength of 1220 MPa and a remarkable yield strength, offering a superior resistance to elongation under stress. Essentially, they are crafted to hold firm under immense pressure without stretching or deforming.
| Carbon Steel 12.9 | C | P | S | B |
| 0.28-0.5 | 0.025 | 0.025 | 0.003 |
| Nominal thread diameter size range [mm] | Proof strength [MPa] | Yield strength (min) [MPa] | Tensile strength (min) [MPa] | Hardness [Rockwell] |
| 1.6–100 | 970 | 1100 | 1220 | C39–44 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is a trustworthy manufacturer and supplier of quality Carbon Steel 12.9 Fasteners in Manama, Bahrain. We specialize in top-grade steel products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel, with the main focus being on Carbon Steel Sheets and Plates. Our vast inventory also includes Pipes, Tubes, Flanges, Forged Fittings, and Bars. Committed to fast delivery and excellent customer service, we use only the finest raw materials to deliver excellent strength, durability, and performance for high-demand industrial uses. Contact us today for all your Carbon Steel 12.9 Fasteners needs!
| DIA | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 | M42 | M45 | M48 | M52 |
| Pitch | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | ||||||||
| Grade A upto length | 40 | 50 | 60 | 80 | 100 | 120 | 140 | 150 | Grade A not applicable to these dia’s | ||||||||||||
| Head Across Flat (S) Nom = Max Min Grade A Grade B | 7 | 8 | 10 | 13 | 16 | 18 | 21 | 24 | 27 | 30 | 34 | 36 | 41 | 46 | 50 | 55 | 60 | 65 | 70 | 75 | 80 |
| 6.78 | 7.78 | 9.78 | 12.73 | 15.73 | 17.73 | 20.67 | 23.67 | 26.67 | 29.67 | 33.38 | 35.38 | Grade A not applicable to these dia’s | |||||||||
| 6.64 | 7.64 | 9.64 | 12.57 | 15.57 | 17.57 | 20.16 | 23.16 | 26.16 | 29.16 | 33 | 35 | 40 | 45 | 49 | 53.8 | 58.8 | 63.1 | 68.1 | 73.1 | 78.1 | |
| Head Height (K) Nom Tol + or – Grade A Grade B | 2.8 | 3.5 | 4 | 5.3 | 6.4 | 7.5 | 8.8 | 10 | 11.5 | 12.5 | 14 | 15 | 17 | 18.7 | 21 | 22.5 | 25 | 26 | 28 | 30 | 33 |
| 0.125 | 0.15 | 0.18 | 0.215 | Grade A not applicable to these dia’s | |||||||||||||||||
| 0.2 | 0.24 | 0.29 | 0.35 | 0.42 | 0.5 | ||||||||||||||||
| Across corners e Min Grade A Grade B | 7.66 | 8.79 | 11.05 | 14.38 | 17.77 | 20.03 | 23.36 | 26.75 | 30.14 | 33.53 | 37.72 | 39.98 | Grade A not applicable to these dia’s | ||||||||
| 7.5 | 8.63 | 10.89 | 14.2 | 17.59 | 19.85 | 22.78 | 26.17 | 29.56 | 32.95 | 37.29 | 39.55 | 45.2 | 50.85 | 55.37 | 60.79 | 66.44 | 71.3 | 76.95 | 82.6 | 88.25 | |
| Major Dia at thread (min) | 3.838 | 4.826 | 5.794 | 7.76 | 9.732 | 11.701 | 13.682 | 15.682 | 17.623 | 19.623 | 21.623 | 23.577 | 26.577 | 29.522 | 32.522 | 35.465 | 38.465 | 41.437 | 44.437 | 47.399 | 51.399 |
| Major Dia at thread (max) | 3.978 | 4.976 | 5.974 | 7.972 | 9.968 | 11.966 | 13.962 | 15.962 | 17.958 | 19.958 | 21.958 | 23.952 | 26.952 | 29.947 | 32.947 | 35.94 | 38.94 | 41.937 | 44.937 | 47.929 | 51.929 |
| Thread Length (b) For lengths < or = 125mm For lengths > 125mm <= 200mm For lengths > 200mm | 14 | 16 | 18 | 22 | 26 | 30 | 34 | 38 | 42 | 46 | 50 | 54 | 60 | 66 | Not specified as full thread recommended | ||||||
| 20 | 22 | 24 | 28 | 32 | 36 | 40 | 44 | 48 | 52 | 56 | 60 | 66 | 72 | 78 | 84 | 90 | 96 | 102 | 108 | 116 | |
| 33 | 35 | 37 | 41 | 45 | 49 | 53 | 57 | 61 | 65 | 69 | 73 | 79 | 85 | 91 | 97 | 103 | 109 | 115 | 121 | 129 | |
You’ll find Carbon Steel 12.9 Fasteners as the unsung heroes in scenarios where structural integrity is absolutely paramount. They are essential in heavy machinery assembly, robust steel frameworks for construction, and high-pressure pipeline systems. The automotive and aerospace industries also rely on them for critical engine components and landing gear assemblies. Any application that involves significant dynamic loads, vibration, or requires a high clamp force to prevent joint failure is where these fasteners prove their worth, providing a margin of safety that is indispensable.
Ahmer Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Manama, Bahrain.
